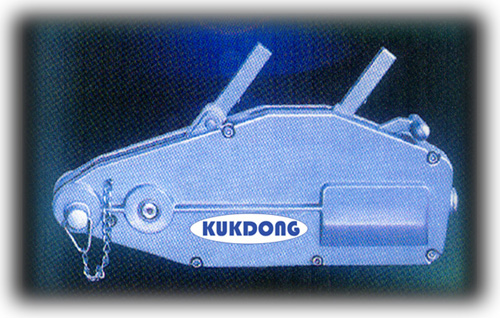

KÍCH CĂNG CÁP - TIFOR
- Mã sản phẩm : KW
- Giá : Liên Hệ
Wire Rope Winch : KW-800
Model | KW-800 |
---|---|
Capacity | 0.8 ton |
Rated Forward Handpower | 343 N |
Rated Forward Travel | 52 mm |
Wire Rope Dia. | 8.3 mm |
Net Weight | 6 kg |
Max. Overall Size (A x B x C) | 428 x 64 x 235 |
Wire Rope Winch : KW-1600

Model | KW-1600 |
---|---|
Capacity | 1.6 ton |
Rated Forward Handpower | 441 N |
Rated Forward Travel | 55 mm |
Wire Rope Dia. | 11 mm |
Net Weight | 11 kg |
Max. Overall Size (A x B x C) | 545 x 97 x 280 |
Wire Rope Winch : KW-3200
Model | KW-3200 |
---|---|
Capacity | 3.2 ton |
Rated Forward Handpower | 441 N |
Rated Forward Travel | 28 mm |
Wire Rope Dia. | 16 mm |
Net Weight | 22 kg |
Max. Overall Size (A x B x C) | 660 x 116 x 325 |
Wire Rope Winch : Exploded View
1 | Left Side Plate | ![]() ![]() ![]() |
2 | Right Side Plate | |
3 | Handle | |
4 | Rivet | |
5 | Hex Washer | |
6 | Spring Washer | |
7 | Hex Bolt | |
8 | Hex Nut | |
9 | Front Jaw Block | |
10 | Back Jaw Block | |
11 | Relaxed Connecting Rod Axle | |
12 | Forward Handle | |
13 | Relaxed Handle | |
14 | Fixed Axle | |
15 | Safety Pin | |
16 | Upper Grip Jaw | |
17 | Connecting Rod | |
18 | 2nd Pin | |
19 | 3rd Pin | |
20 | 4th Pin | |
21 | Bushing | |
22 | Bushing | |
23 | Shake Rod | |
24 | 5th Pin | |
25 | Connecting Rod | |
26 | Crank Axle | |
27 | Stay Pin | |
28 | Guide Tube of Wire Rope | |
29 | Tube Handle |
